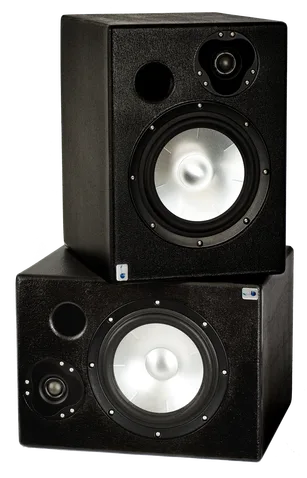

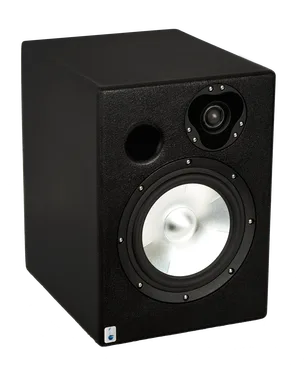

HX Audio F22A
Two-way, 8in. woofer and 1in. tweeter
High Fidelity
Low Distortion
Low Processing Delay
Linear Phase High Slope Crossover
Low Distortion
Low Processing Delay
Linear Phase High Slope Crossover
Two Personalities
Linear On-Axis Response
Linear Power Response
Linear On-Axis Response
Linear Power Response
Flush Mount Compatible
Pair Matched
Complete Documentation
Pair Matched
Complete Documentation
Design Philosophy
Type F22A is a two-way compact bi-amplified active monitor system. It is specifically designed for the most accurate sound reproduction within the frequency range of the human ear. Type F22A is a reference playback system that has low frequency extension that is comparable to much larger systems.
In music, the middle C’s frequency is 261.6 Hz based on the equal temperament tuning. Middle C is located right in the middle of the human ear's to perceive a complex sound. The fundamental frequency of a musical pitch is often located in the range of 100-1000 Hz. Type F22A reproduces very linear and accurate sound reproduction at these frequencies, denoted by its linear frequency and phase response.
Type F22A is a two-way compact bi-amplified active monitor system. It is specifically designed for the most accurate sound reproduction within the frequency range of the human ear. Type F22A is a reference playback system that has low frequency extension that is comparable to much larger systems.
In music, the middle C’s frequency is 261.6 Hz based on the equal temperament tuning. Middle C is located right in the middle of the human ear's to perceive a complex sound. The fundamental frequency of a musical pitch is often located in the range of 100-1000 Hz. Type F22A reproduces very linear and accurate sound reproduction at these frequencies, denoted by its linear frequency and phase response.
Technology
Type F22A utilizes modern digital processing. Hybrid minimum phase and linear phase filters are carefully implemented as the crossover and correction filters with low processing delay. As a result, type F22A maintains very flat phase response while utilizing exceptionally steep crossover filters to control out-of-band frequencies in each transducer. The flat phase response suggests that most frequencies arrive at the same time, in addition the waveform of the original signal from 100 Hz and up is precisely reproduced.
Type F22A features two 500 W @ 4 Ohms class-D amplifier modules. The ample power maintains a high crest factor for sound reproduction in the high frequency region with low levels of distortion. Each transducer is digitally protected from over loading and over excursion.
Type F22A utilizes modern digital processing. Hybrid minimum phase and linear phase filters are carefully implemented as the crossover and correction filters with low processing delay. As a result, type F22A maintains very flat phase response while utilizing exceptionally steep crossover filters to control out-of-band frequencies in each transducer. The flat phase response suggests that most frequencies arrive at the same time, in addition the waveform of the original signal from 100 Hz and up is precisely reproduced.
Type F22A features two 500 W @ 4 Ohms class-D amplifier modules. The ample power maintains a high crest factor for sound reproduction in the high frequency region with low levels of distortion. Each transducer is digitally protected from over loading and over excursion.
Presets
Type F22A features two voicings: a flat on-axis preset for a critical monitoring and a wide sweetspot for musicians/composers. The wide sweetspot preset is created by calculating and analyzing the power response of the monitor to accommodate the best off-axis listening experience.
The bass tilt presets are created with room acoustics in mind, where the corner frequency is not fixed, maintaining a very neutral and smooth overall response. The bass tilt presets will accommodate different sizes of rooms, including flush mounting compensation.
Type F22A features two voicings: a flat on-axis preset for a critical monitoring and a wide sweetspot for musicians/composers. The wide sweetspot preset is created by calculating and analyzing the power response of the monitor to accommodate the best off-axis listening experience.
The bass tilt presets are created with room acoustics in mind, where the corner frequency is not fixed, maintaining a very neutral and smooth overall response. The bass tilt presets will accommodate different sizes of rooms, including flush mounting compensation.
Structure
To maintain solid and tight low frequency performance, type F22A features an optimized vented cabinet design with an internally braced wood enclosure. The resonance within the cabinet is further minimized by the asymmetrical interior shape and the port is carefully optimized, resulting in very clean and transparent low and low mid frequency reproduction.
The input is a balanced female XLR connection with universal mains power supply.
To maintain solid and tight low frequency performance, type F22A features an optimized vented cabinet design with an internally braced wood enclosure. The resonance within the cabinet is further minimized by the asymmetrical interior shape and the port is carefully optimized, resulting in very clean and transparent low and low mid frequency reproduction.
The input is a balanced female XLR connection with universal mains power supply.
Please contact us to check availability. Sales tax will be applied for PA residents.
Price using parts before COVID: $3950 USD / pair.
The price will be updated to reflect after COVID when the current part inventories are completely used.
Warranty and Return
Price using parts before COVID: $3950 USD / pair.
The price will be updated to reflect after COVID when the current part inventories are completely used.
Warranty and Return
User Guide [pdf]
Safety Information
Warranty Information
Service Information
Unpacking and Handling
Connection
Illustrated General Setup and Positioning
Optimum Listening Distance
Preset Information
Maximum Input Information
Volume Knob Calibration
Surface Cleaning
Safety Information
Warranty Information
Service Information
Unpacking and Handling
Connection
Illustrated General Setup and Positioning
Optimum Listening Distance
Preset Information
Maximum Input Information
Volume Knob Calibration
Surface Cleaning
Layman's Handbook of type F22A's Data Sheet [pdf]
Frequency Response and General Description
Phase Response
Side Techy Note: Why We Use 48 kHz Sample Rate
How Transparent is the Loudspeaker?
Why Can It be Used in Vertical Position Only?
Can You Explain the Time Response Graphs?
May I Listen Closer than 0.8 m or Farther than 3 m?
Frequency Response and General Description
Phase Response
Side Techy Note: Why We Use 48 kHz Sample Rate
How Transparent is the Loudspeaker?
Why Can It be Used in Vertical Position Only?
Can You Explain the Time Response Graphs?
May I Listen Closer than 0.8 m or Farther than 3 m?
